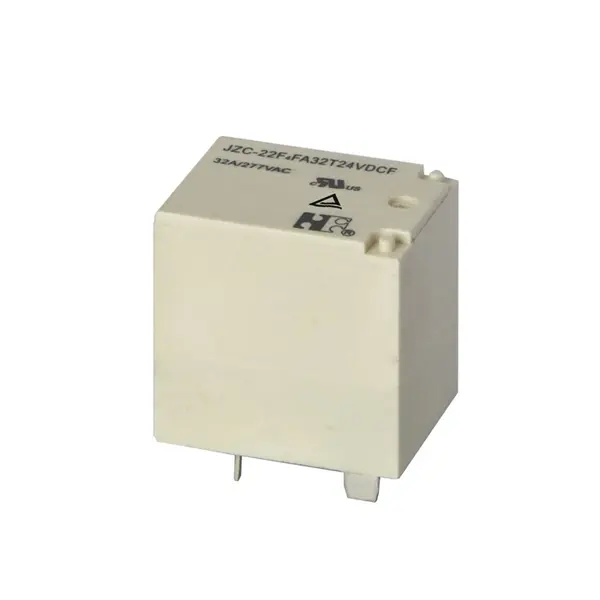

32A Miniature Automoitve Relay
  • 32A Miniature Automoitve Relay32A Miniature Automoitve Relay

32A Miniature Automoitve Relay

Model:JZC-22F4

You can rest assured to buy customized 32A Miniature Automoitve Relay from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

● 32A switching capability
● Dielectric strength of 4kV between coil and contacts
● Contact Gap ≥ 2.1mm
● RoHS Compliant

These are related to the 32A Miniature Automoitve Relay news, in which you can learn about the updated information in 32A Miniature High Power Relay, to help you better understand and expand 32A Miniature High Power Relay market. We sincerely welcome new and old customers to visit our factory for consultation and negotiation.

Features

Small size, light weight , low coil power consumption.

Switching capacity can reach 32A/277VAC.

High dielectric strength.

Contact gap 2.1mm.

PC board mounting is available.

High-performance power relay, suitable for photovoltaic systems (solar-inverters), automotive applications, motor control,

compressor control, and home appliances.


Ordering Information

1 Part number: JZC-22F4

2 Enclosure: S: Wash tight F: Flux proof

3 Contact arrangement: A:1A

4 Contact rating: 32A/277VAC

5 Coil power: T:2.8W

6 Coil rated voltage(V): DC:9,12,24

7 Resist heat class: NIL Standard ;F:155


Contact Data

Contact Arrangement 1A(SPSTNO)
Contact Material AgSnO2
Contact Rating(Resistive)

32A/277VAC

Max. Switching Power 8864VA
Max. Switching Voltage 400VAC Max. Switching Current: 32A
Contact Resistance ≤100mΩ Item 4.12 of IEC61810-7
Operational Life Electrical 1×105
Item 4.30 of IEC 61810 -7
Mechanical 1×107 Item 4.31 of IEC 61810-7

CAUTION:

1) For the intermediate current, it only applies to the room temperature.


Coil Parameter

Dash numbers Coil voltage VDC Coil resistance
Ω±10%
Pick-up voltage VDC(max) (75% of rated voltage ) Drop-out voltage VDC(min) (5% of rated voltage) Coil power W Operate time ms Release time ms
Rated Max.
009-2800
9
11.7
28.9
6.75
0.45 2.8 ≤15 ≤10
012-2800 12 15.6 51.4 9.00 0.6
024-2800 24 31.2 205.7 18.0 1.2

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

3.Coil holding voltage is 36% of nominal voltage after applying nominal voltage for 200 ms.


Characteristics

Insulation Resistance 100MΩ min (at 500VDC) Item 4.11 of IEC 61810-7
Dielectric Strength

Between Contacts

50/60Hz 2000V  1min

Item 4.9   of IEC 61810-7
Between Contact and Coil 50/60Hz 4000V  1min Item 4.9   of IEC 61810-7
Shock Resistance Functional: 98m/s² Item 4.26 of IEC 61810-7
Destructive: 980m/s²
Vibration Resistance Functional: 10Hz~55Hz Double amplitude 1.0mm Item 4.28 of IEC 61810-7
Destructive: 10Hz~55Hz Double amplitude 1.0mm
Terminals Strength 10N Item 4.24 of IEC 61810-7
Ambient Temperature -40℃~105℃
Relative Humidity 5% to 85% Item 4.16 of IEC 61810-7
Mass 16g Item 4.7 of IEC 61810-7


Safety Approvals

Safety approval UL&CUR
Load 32A/277VAC


Dimensions(mm)

CAUTION

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
