DIL pitch terminals. High sensitivity :0.14W or 0.10W nominal power.
Conforms to FCC Part 68 1.5kV surge and dielectric 1000VAC.
Monostable, single or double coil latching relay .
Application for telecommunication equipment, office equipment, security alarm systems, measuring instruments, medical monitoring equipment, audio visual equipment, flight simulator, sensor control.
1 Part number P
2 Operating function:
NIL: Single Side Stable
L:1 Coil Latching; K:2 Coil Latching
3 Coil rated voltage(V): DC:3,4.5,5,6,9,12,24
4 Contact material: NIL: AgPd W: AgNi
| Contact Arrangement | 2C(DPDT(B-M)) (Bifurcated Crossbar) | |
| Contact Material | AgPd(Au plated ) AgNi(Au plated) | |
| Contact Rating (Resistive) | 1A,2A/30VDC; 0.5A/125VAC | |
| Max. Switching Power |
60W 62.5VA Min. Switching Load 0.01mA/10mV(Reference Value) |
|
| Max. Switching Voltage |
220VDC 250VAC Max. Swit ching Current:2A |
|
| Contact Resistance |
≤50mΩ Item 4.12 of IEC 61810-7 |
|
| Operation Life | Electrical |
2×105 (DC AgPd);1×105(DC AgNi) 1×105(AC) Item 4.30 of IEC 61810-7 |
| Mechanical |
1×108 Item 4.31 of IEC 61810-7 |
|
CAUTION:
Relays previously tested or used above 10mA resistive at 6V maximum DC or peak AC open circuit are not recommended for subsequent use in low level applications.
| Dash numbers | Coil voltage VDC |
Coil resistance Ω ± 10% |
Pick-up voltage VDC(max) (75%of rated voltage ) | Drop-out voltage VDC(min) (10% of rated voltage) | Coil power W | Operate time ms | Release time ms | ||
| Rated | Max. | ||||||||
| P-003 | 3 | 7.5 | 64.3 | 2.25 | 0.3 | 0.14 | Approx.2 | Approx.1 | |
| P-004 | 4.5 | 11.25 | 144.6 | 3.38 | 0.45 | 0.14 | |||
| P-005 | 5 | 12.5 | 178 | 3.75 | 0.5 | 0.14 | |||
| P-006 | 6 | 15.0 | 257 | 4.50 | 0.6 | 0.14 | |||
| P-009 | 9 | 22.5 | 579 | 6.75 | 0.9 | 0.14 | |||
| P-012 | 12 | 30.0 | 1028 | 9.00 | 1.2 | 0.14 | |||
| P-024 | 24 | 48.0 | 2880 | 18.0 | 2.4 | 0.20 | |||
| 1 Coil Latching | Set | Reset(Max) | Set | Reset | |||||
| PL-003 | 3 | 8.7 | 90 | 2.25 | -2.25 | 0.10 | Approx.2 | Approx.2 | |
| PL-004 | 4.5 | 13.0 | 202.5 | 3.38 | -3.38 | 0.10 | |||
| PL-005 | 5 | 14.5 | 250 | 3.75 | -3.75 | 0.10 | |||
| PL-006 | 6 | 17.4 | 360 | 4.50 | -4.50 | 0.10 | |||
| PL-009 | 9 | 26.1 | 810 | 6.75 | -6.75 | 0.10 | |||
| PL-012 | 12 | 34.8 | 1440 | 9.00 | -9.00 | 0.10 | |||
| PL-024 | 24 | 57.6 | 3840 | 18.0 | -18.0 | 0.15 | |||
| 2 Coils Latching | Set Coil | Reset Coil | Set | Reset(Max) | Set | Reset | |||
| PK-003 | 3 | 6 | 45 | 45 | 2.25 | 2.25 | 0.20 | Approx.2 | Approx.2 |
| PK-004 | 4.5 | 9 | 101 | 101 | 3.38 | 3.38 | 0.20 | ||
| PK-005 | 5 | 10 | 125 | 125 | 3.75 | 3.75 | 0.20 | ||
| PK-006 | 6 | 12 | 180 | 180 | 4.50 | 4.50 | 0.20 | ||
| PK-009 | 9 | 18 | 405 | 405 | 6.75 | 6.75 | 0.20 | ||
| PK-012 | 12 | 24 | 720 | 720 | 9.00 | 9.00 | 0.20 | ||
| PK-024 | 24 | 36 | 1920 | 1920 | 18.0 | 18.0 | 0.30 | ||
CAUTION:
1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release(reset) voltage are for test purposes only and are not to be used as design criteria.
3.When latching relays are installed in equipment, the set and reset coil should not be powered simultaneously. Coil should not be pulsed with less than the nominal coil voltage and pulse width should be a minimum of three times the specified operate time of the relay. If these conditions are not followed, it is possible for the relay to be in the magnetically neutral position .
| Electrostatic Capacitance | ||
| Between Open Contacts | Approx.0.4pF | Item 4.41 of IEC 61810-7 |
| Between Coil & Contacts | Approx.0.9pF | Item 4.41 of IEC 61810-7 |
| Between Contact Poles | Approx.0.2pF | Item 4.41 of IEC 61810-7 |
| Insulation Resistance | 1000M Ω min(at 500VDC) | Item 4.11 of IEC 61810-7 |
| Dielectric Strength | ||
| Between Open Contacts | 1000VAC 1min | Item4.9 of IEC 61810-7 |
| Between Coil & Contacts | 1000VAC 1min | |
| Between Contact Poles | 1000VAC 1min | |
| Surge Withstand Voltage | ||
| Between Open Contacts | 1500V | FCC68 |
| Between Coil & Contacts | 1500V | |
| Between Contact Poles | 2500V | |
| Shock Resistance |
Functional: 490m/s2 11 ms; Destructive:980 m/s2 6ms |
Item 4.26 of IEC 61810-7 |
| Vibration Resistance |
10Hz~ 55Hz Double amplitude Functional: 3mm Destructive: 5mm |
Item 4.28 of IEC 61810-7 |
| Terminals Strength | 5N | Item 4.24 of IEC 61810-7 |
| Temperature Range | -40℃~70℃(-40° F~158° F) | |
| Mass | Approx. 1.5g | Item 4.7 of IEC 61810-7 |
| Safety approval | UL&CUR | TUV |
| Load | 1A,2A/30VDC; 0.5A/125VAC | 1A/30VDC; 0.5A/125VAC |
CAUTION:

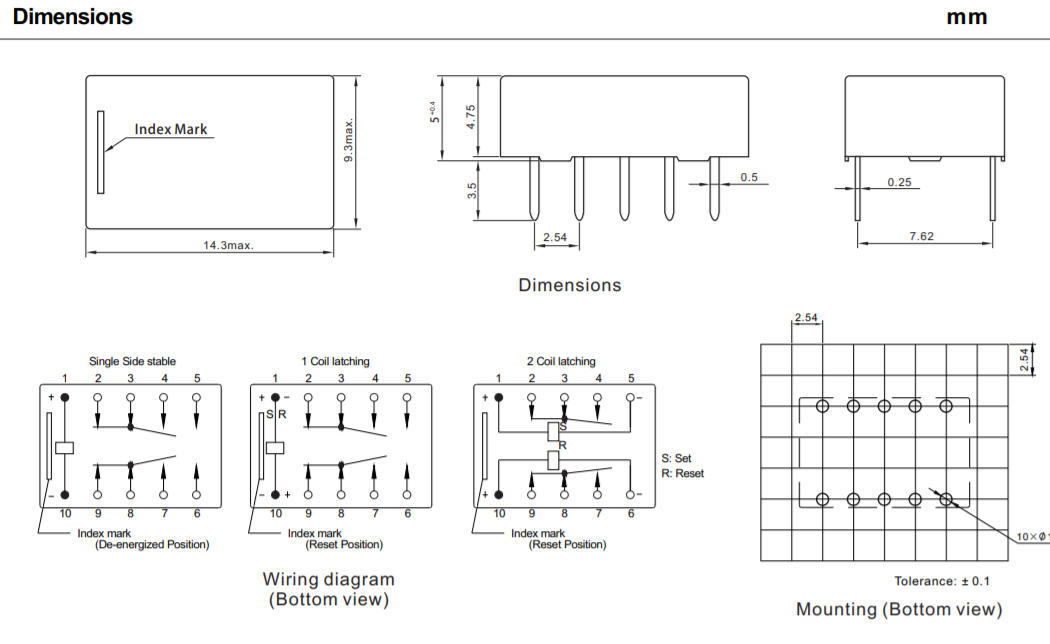

In case of no tolerance shown in outline dimension: outline dimension ≤1mm tolerance should be ±0.2mm outline dimension >1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension >5mm, tolerance should be ±0.4mm.
